QuickScale

Measuring and
Estimating Made Simple
QuickScale is for taking measurements and areas off PDF and DWG drawings. All you need is the scale of the drawing and/or one reference measurement. Calibrate the PDF by clicking on either end of a known measurement and type in the distance, this will scale the drawing.

From then on, click on the points and corners of the areas and dimensions to calculate them.

How it works - Few Easy Steps

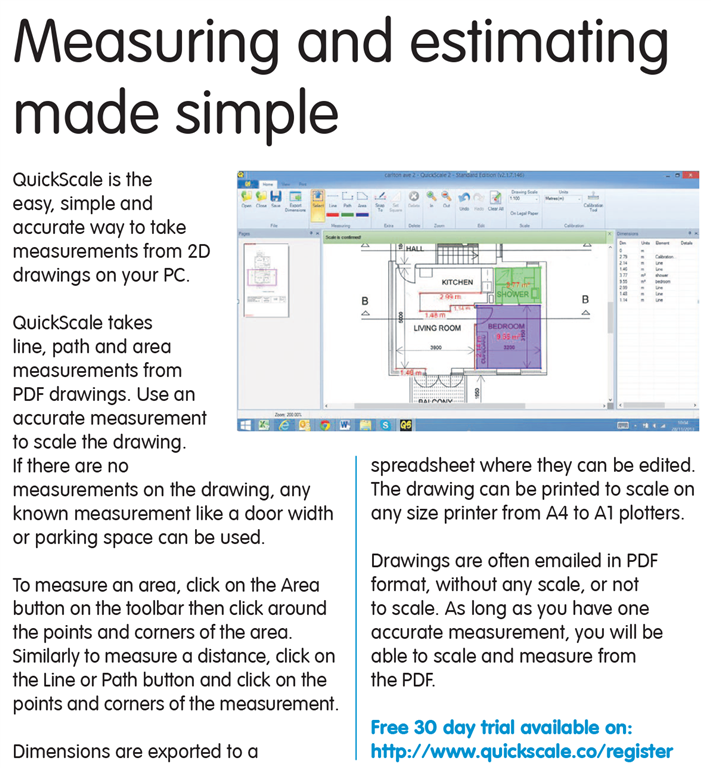

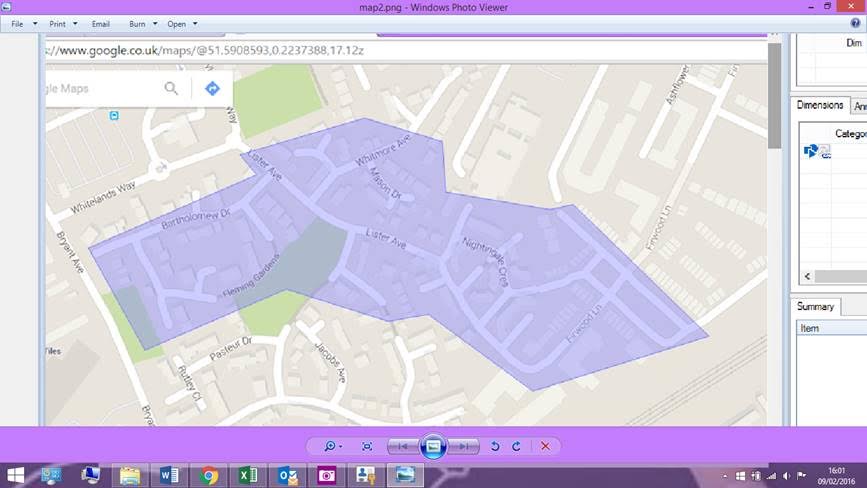

QuickScale is for taking 2D measurements and areas off PDF and DWG drawings, hand drawn sketches, and photos.
All you need is the scale of the drawing and/or one reference measurement.

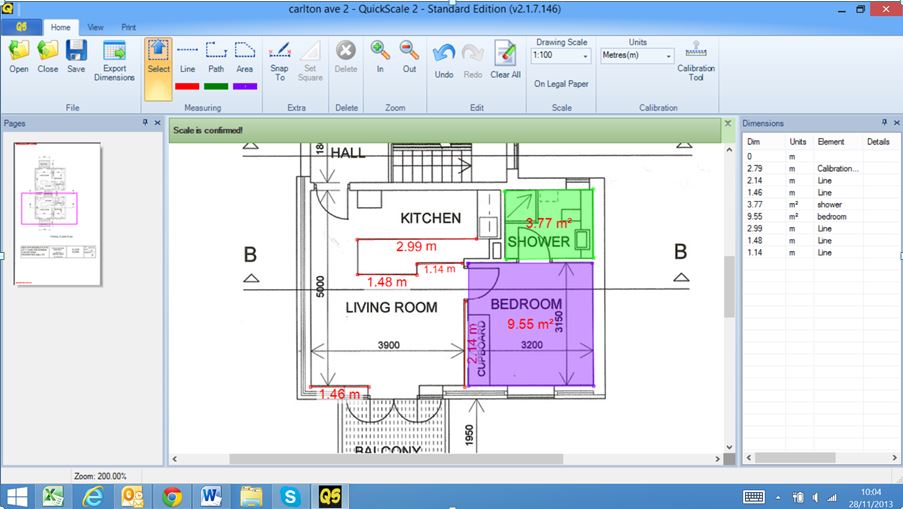

Click on the points and corners of the measurements and QuickScale will calculate the dimensions.

QuickScale is purchased as a desktop or USB licence.

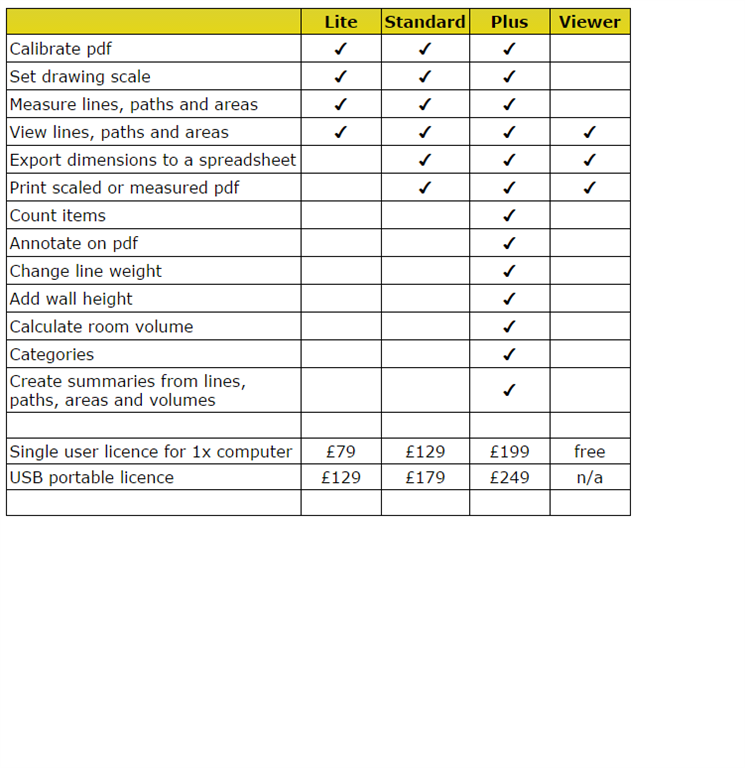

There are 3 editions available – Lite, Standard and Plus.

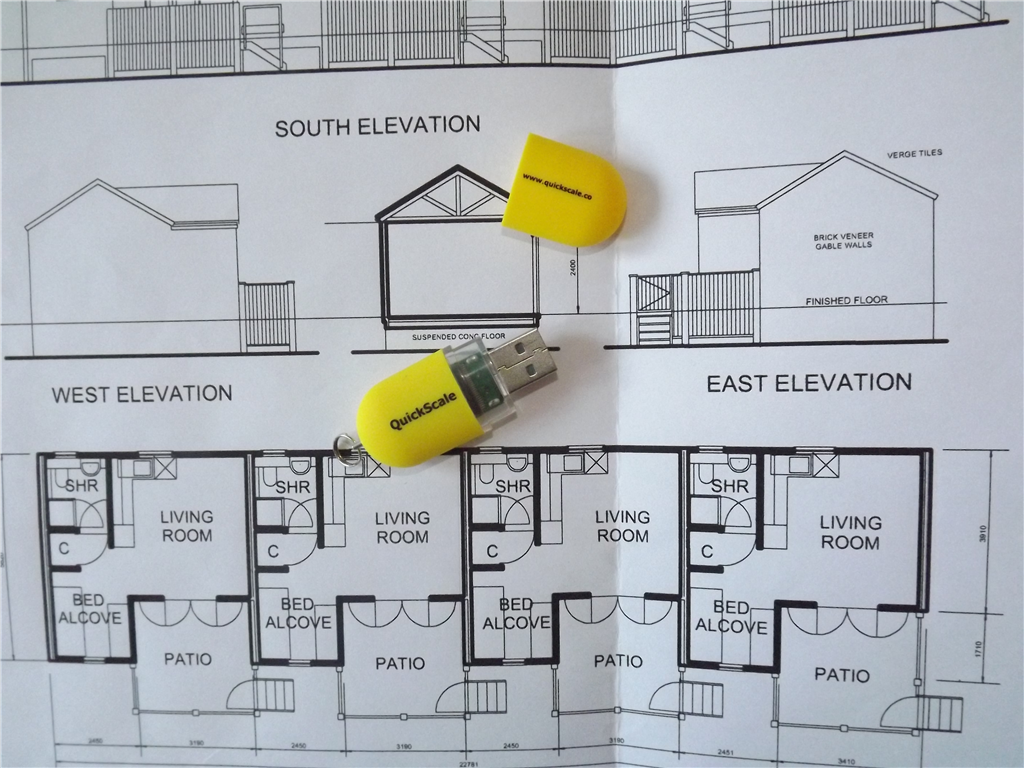

QuickScale is available as a desktop licence, downloaded onto a Windows pc, or on a USB stick. If you have a Mac, you need to install Windows with Bootcamp, VMware Fusion or Parallels, and this will enable QuickScale to run (see the support page for additional info).

Measure in metres, millimetres, feet, inches, miles, kilometres and microns.

Export dimensions to a spreadsheet.

Print the drawing and measurements to scale on any size printer from A4 to A0.

If there is no scale or the drawing is not to scale, calibrate the PDF by clicking on either end of a known measurement/door width/parking space etc and type in the distance. This will scale the drawing. From then on, click on the points and corners of the areas and dimensions to calculate them.

You don’t need to send the drawing to a printer and you don’t need a scale rule.

QuickScale is designed to be simple to use and is competitively priced.

Updates are free providing you keep track of your keycode.

Desktop licences are emailed to you. USB’s are delivered, unless you wish to provide your own 2GB USB. Deliveries to South Africa are currently not arriving therefore we ask you to provide your own 2GB USB and will email everything to you.
After you place the order, you will receive an email with the licence and keycode information. Please ensure you receive and retain this showing the keycode in red writing. This is not the same as the order/invoice email. The keycode will allow you to update for free.

We no longer support v1 or v2 licences bought before 13 July 2017. You will be able to keep using them where they are currently installed but we will not be able to support or move them.
